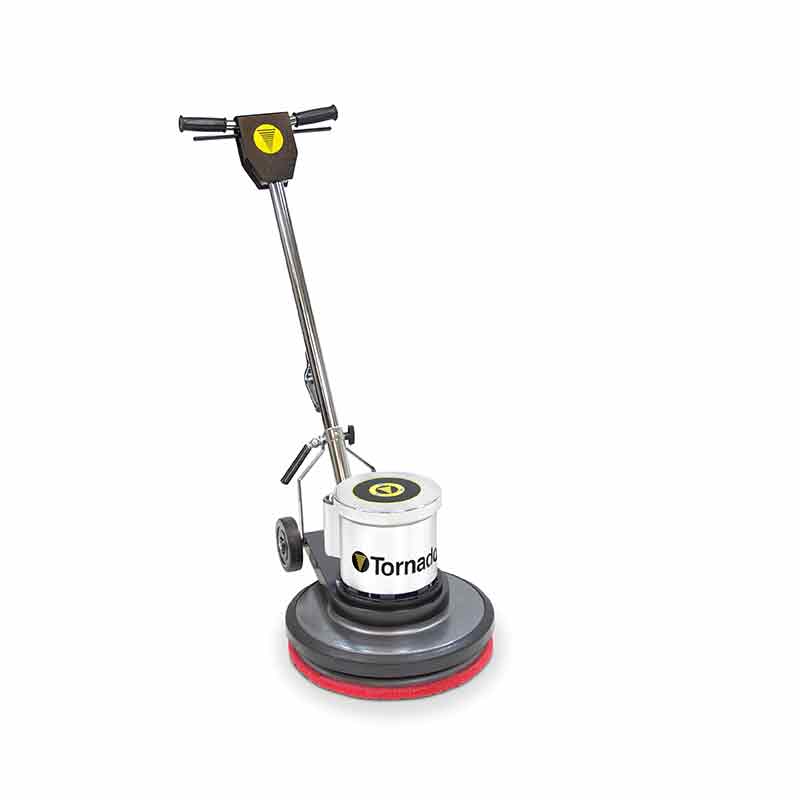

Tornado M Series Heavy Duty Electric Floor Machine
M Series Electric Floor Machines 17″ & 20″ Models 97590, 97595
Heavy-duty power built for tough environments.
When cleaning demands are at their toughest, the Tornado® M Series Floor Machines deliver unmatched strength and reliability. Built with rolled steel bases, non-marking soft bumper guards, and a rugged triple planetary gear system, these machines are designed to handle heavy-duty applications with ease.
The cast aluminum Start Guard I handle adds strength, safety, and operator comfort, while the heavy-duty dual-capacitor 1.5 HP motor provides high torque with a low amp draw for maximum power and efficiency.
With durability, performance, and operator comfort all in one package, the M Series sets the standard for professional floor care.
Features:
- Offering a minimum of 175 rpm scrubbing power
- Quick-grip pad holders come standard
- Cam-lever provides variable height adjustment
- Ergonomic Start Guard and handle for added strength
- Cushioned handle grips to minimize operator fatigue
- Optional shampoo tank with variable-rate solution control for scrubbing or carpet cleaning
- Can be fitted with pads and disc brushes for multiple tasks
- Bi-Speed models have the versatility to provide stripping or ultra high-speed polishing
- Quick-grip pad holder for more efficient change and disposal of disc pads
Specifications:
Model | M 17" 175 RPM | M 20" 175 RPM |
---|---|---|
Catalog Number | 97590 | 97595 |
Cleaning Path | 17 in. | 20 in. |
Housing Construction | Rolled Steel | Rolled Steel |
Motor Height | 16 in. | 16 in. |
Capacity (Solution Tank) | 3 gal. (optional) | 3 gal. (optional) |
Brush Design / Type | Rotary Disc | Rotary Disc |
Disc RPM | 175 | 175 |
Vac Motor | 1.5 HP | 1.5 HP |
Power | 115V | 115V |
Weight | 100 lbs. | 105 lbs. |
Dimensions (L x W x H) | 23 in. x 17 in. x 49 in. | 26 in. x 20 in. x 49 in. |
Rotary Diameter | 17" | 20" |
Wheel Type | 5" Non-marking / Self-lubricating | 5" Non-marking / Self-lubricating |
Handle Design | Cast Aluminum | Cast Aluminum |
