Tornado Surge 220 and 500 PSI | Carpet Extractor | 15 Gallon
The Tornado Surge 500 and 220 Carpet Extractors deliver powerful performance and high-capacity cleaning with 15-gallon solution and recovery tanks and a 133 CFM vacuum for faster drying and deeper results. Equipped with an Airwatt motor engineered for wet pick-up, sealed bearings, and electronic float shutoff, these units provide superior moisture protection and long-term reliability. User-friendly design features include onboard storage for hoses, wands, cords, and chemicals, along with easily accessible controls and quick-fill and drain options making carpet maintenance efficient, consistent, and effortless.
Features:
- Built-in storage for the included wand, hose, and power cords and for chemicals makes it easy to transport and store this unit.

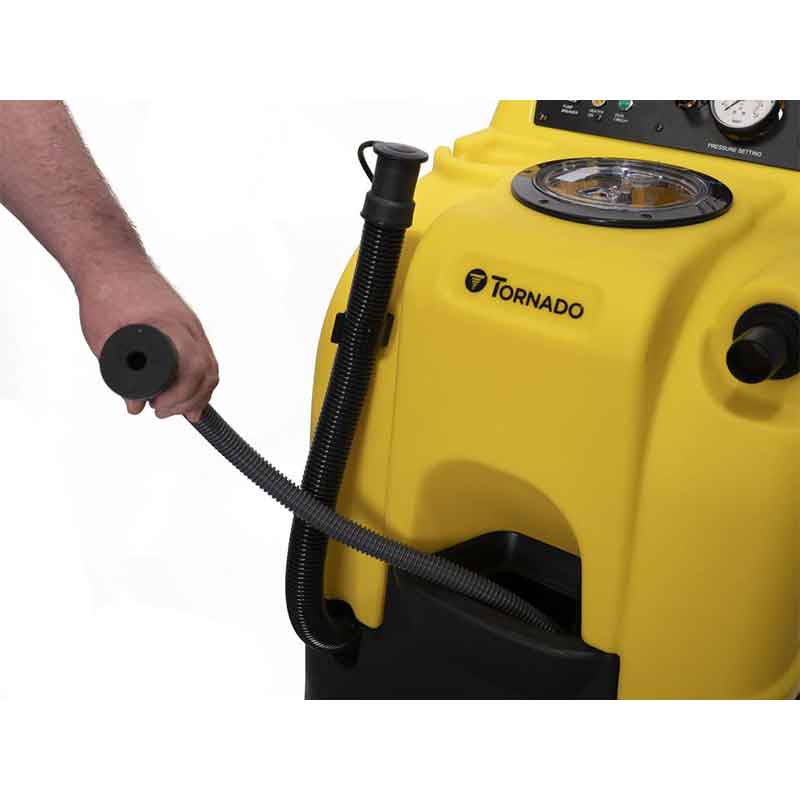

- Easy to fill and empty, with a 10-foot sink fill hose, wide opening designed for bucket pours, and front-mounted drain hose
- Intuitive controls all conveniently located on top of the machine, reducing the need to reach or bend over while operating the machine.

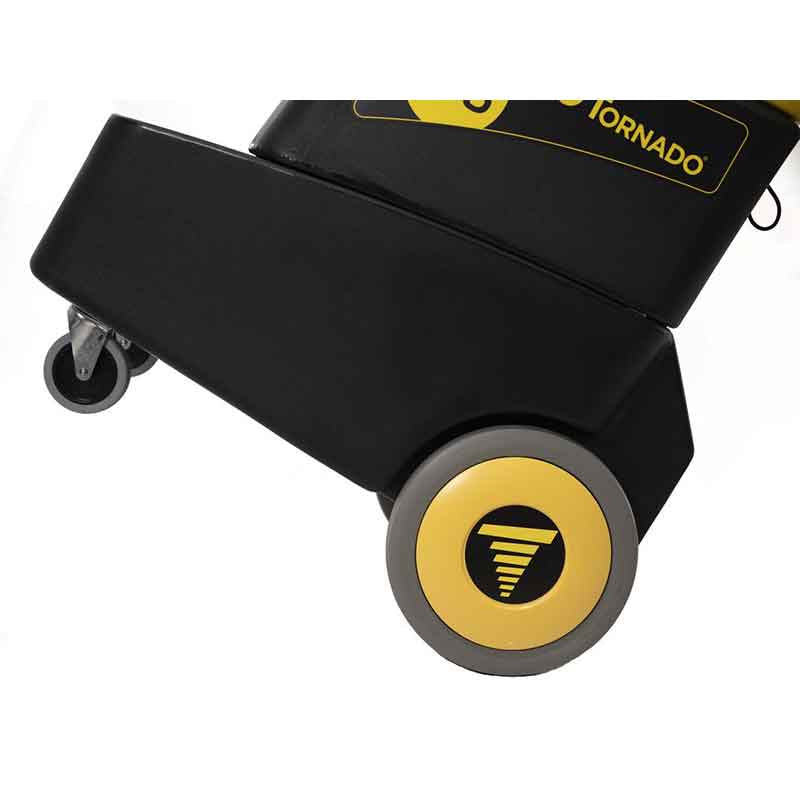

- Increased mobility with large 12” rear wheels, a unique stair-assist design and handle-mounted transport wheels.

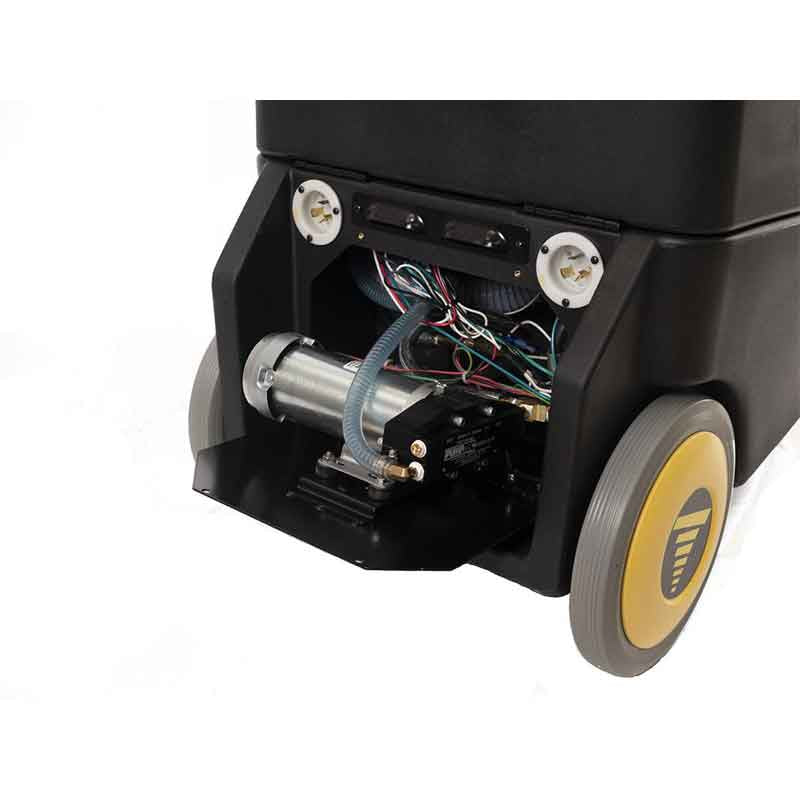

- The rear service panel and clamshell design allow easy access to the pump, vac and heater, drastically reducing downtime for repairs and maintenance.
- Features an Airwatt Motor, the industry’s only vacuum motor specifically designed for wet pick-up, with sealed bearing to prevent premature failure from moisture.
Specifications:
Name | Surge 220 | Surge 500 |
---|---|---|
Model # | TE200-G15-U | TE310-G15-U |
Solution & Recovery Tank Capacity (ea.) | 15 Gallons | 15 Gallons |
Vac Motor | Single Airwatt (625 Watts) | Single Airwatt (625 Watts) |
CFM | 133 | 133 |
Waterlift | 125" | 125" |
Solution Pump (PSI) | 220 | 50-500 |
Heater | Single Element | Single Element |
Max Heat | 190 | 190 |
Vacuum/Solution Hose | 20 Ft. Insider Hose | 20 Ft. Insider Hose |
Vacuum Hose Diameter | 1.5" | 1.5" |
Cord Configuration | Dual Circuit | Dual Circuit |
Amp Draw | 15 amps | 15 amps |
Front Wheels | 4" Casters | 4" Casters |
Rear Wheels | 12" | 12" |
Wand (included) | Up to 800 PSI | Up to 800 PSI |
Weight (lbs) | 152 | 152 |
Dimensions (LxWxH) | 36.5"x23.5"x45.5" | 36.5"x23.5"x45.5" |
ETL Certified | Yes | No |
